QB2 with Microflashing

PN# 17662

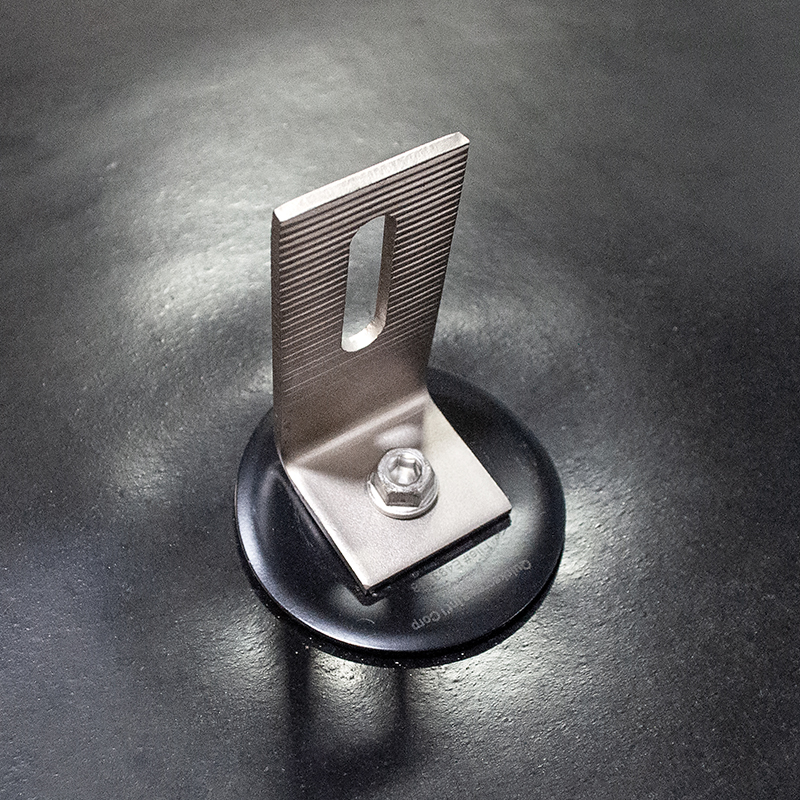

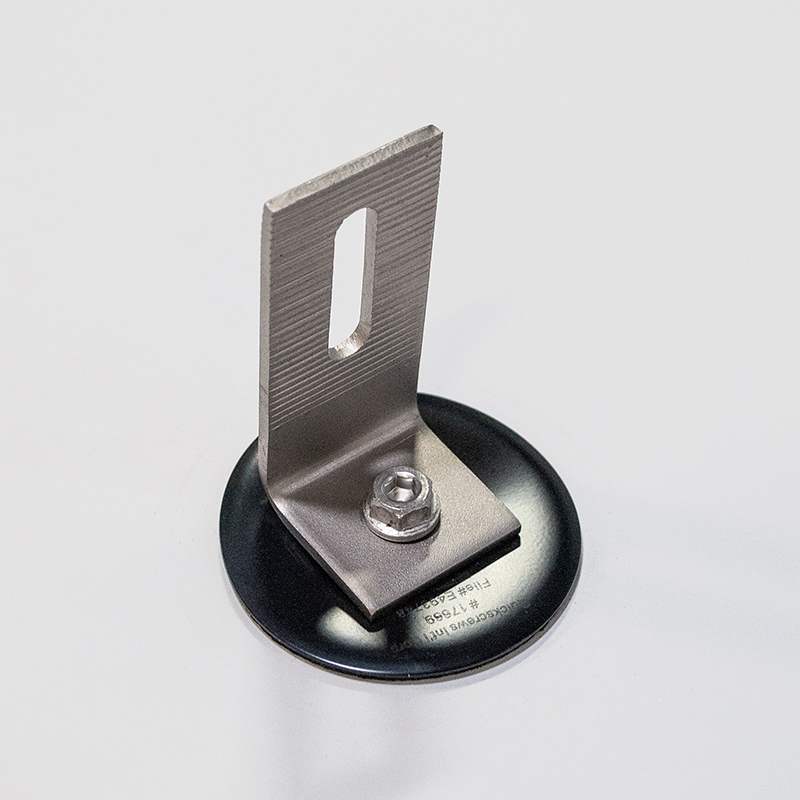

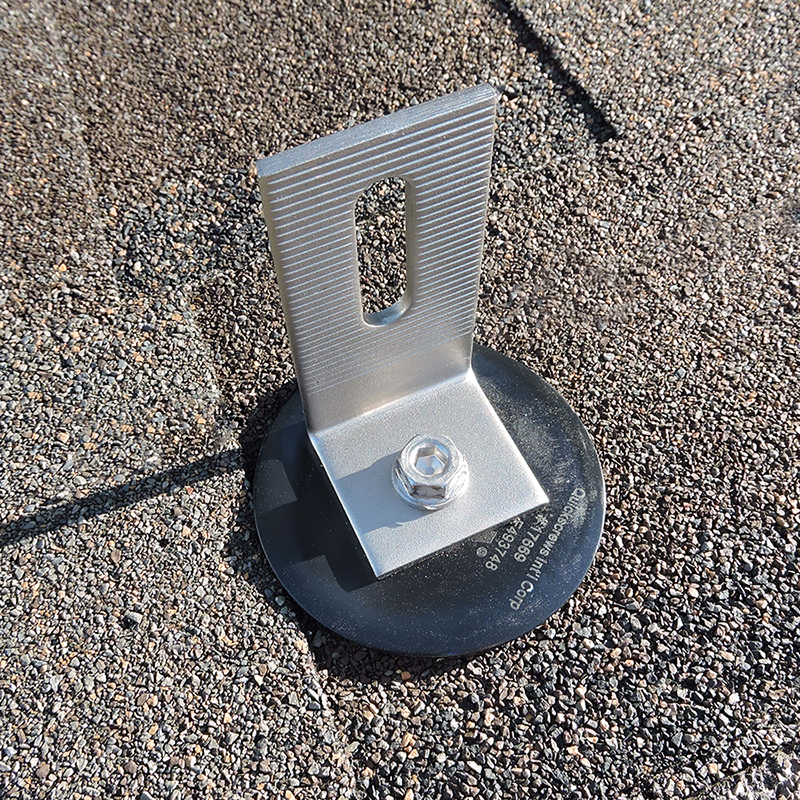

Multi Roof Mount - QB2 Kit with 3" Microflashing and Stainless Steel L-Foot.Image removed.

The 10MM x 46MM rail slot accepts 5/16" or 3/8" bolts.

Simply Drill, seal, and mount!

Quantity per KTP

25
KTP Weight
11 lb
Diameter Length Drive Head Point Finish Bit
5/16" 4" Hex Hex Head Single T17 Stainless Steel Hex

Primary Use: The QB2 Kit is the Fastest and Easiest way to mount Solar to Asphalt, EPDM, and TPO Roofs

  • ASTM E331 @ 15.00psf No Leakage. ASTM E331 (modified), 120 min @ 30.00 PSF No Leakage.
  • ASTM E2124 (modified), 6" water column for 7 days No Leakage.
  • Compatible with Rail and Most Railless Systems Including Snap N Rack, Unirac, IronRidge and Eco Fasten.
  • Patent #8448407
  • Pro Tip: Dual Drive System use either Standard 1/2" Hex or 6MM Hex Insert Bit.
  • Pro Tip: To compress MicroFlashing® properly with QB2 requires 150 Minimum Torque Lbs/Inch.
